Product Details:
|
| Year: | Universal | Model: | Universal |
|---|---|---|---|
| Type: | General Seat | Material: | Steel, Foam, Plastic,fabric |
| Car Fitment: | Universal | Size: | 610mm*1045mm*530mm |

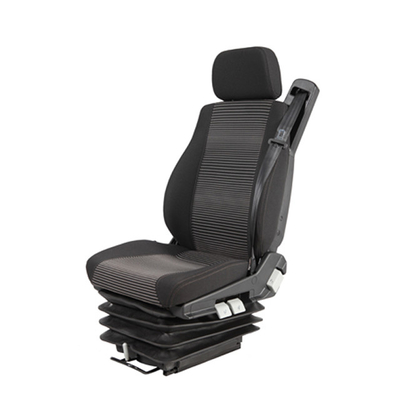

| Name: | Isri Luxury Air Suspension Truck Driver Seats For DAF | Function: | Air Suspension Truck Driver Seats |
| Keyword1: | Tractor Suspension Seats | Key Words: | Pneumatic Suspension Seat Heavy Duty Truck Seats |
| Port: | Shanghai |
Function:
Horizontal adjustment: stroke 200mm (10mm×20)
Weight adjustment: Automated up to 130kg (40~130kg), air pressure 0.3~0.7Mpa (air pressure of supply 0.7~0.9Mpa)
Pneumatic suspension function: stroke ±40mm
Height / rake adjustment: adjust range ±65mm, rake adjustable ±14°;
Backrest adjustment: adjust range 80°+41°
Head restraint adjustment: adjust range 75mm (25mm×3)
Three-point-belt
Seat size(length × height × width) 610mm×1045mm×530mm
Seat cushion height(work state)230mm, seat cushion width 485mm, seat cushion depth 480mm
Backrest height 630mm, backrest width 485mm
Connect size(L/R×F/B)216mm×320mm(280)
