7 levels Height rake and Backrest adjustment Heavy truck mechanical suspension seat

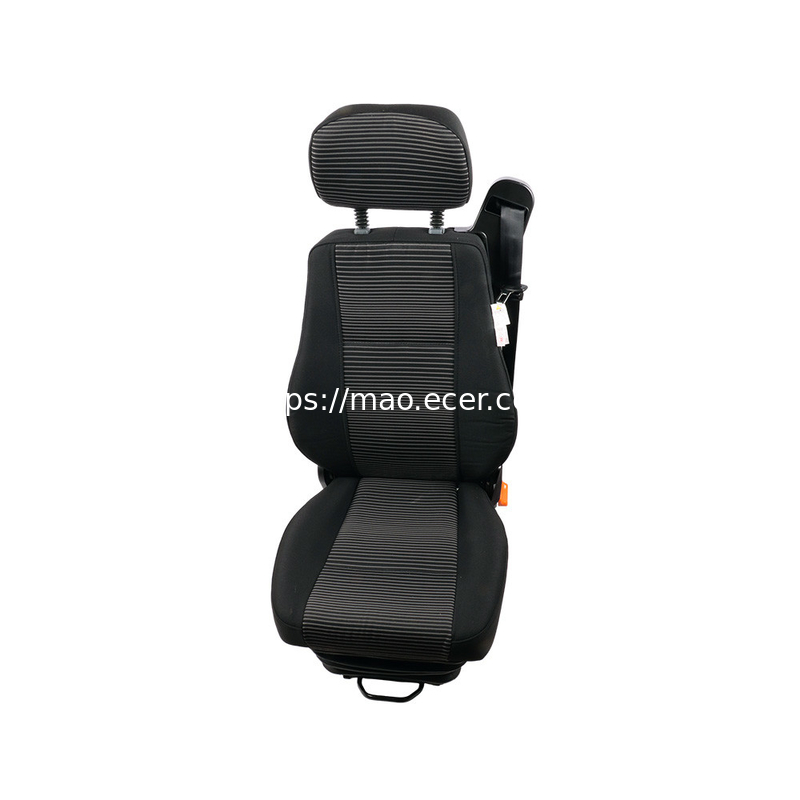

Large Image : 7 levels Height rake and Backrest adjustment Heavy truck mechanical suspension seat

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	HWHongRV
Model Number:	HT911-50

Payment & Shipping Terms:

Price:	$450.00/sets 1-9 sets
Packaging Details:	carton
Supply Ability:	3000 Piece/Pieces per Month

Contact Now

7 levels Height rake and Backrest adjustment Heavy truck mechanical suspension seat

Description

Model:	OTHER	Year:	OTHER
Type:	General Seat	Material:	Cloth And Cloth
Car Fitment:	OTHER	Size:	Stardard
Weight Adjustment:	40-130Kg	Backrest Adjustment:	80+41°
Head Restraint Adjust Range:	75mm	Height Adjust Range:	65mm
Rake Adjustable:	±14°	Mechanical Suspension Stroke:	±30mm
Horizontal Adjustment Stroke:	0±120mm	Option Accessory:	Armrest,pneumatic (electric) Massage; Electric Heating; Ventilation
Cover:	Black Imitation Leather Or Cloth Fabrics	Keywords 1:	Air Ride Truck Seats Air Ride Truck Seating
Port:	Shanghai

7 levels Height rake and Backrest adjustment Heavy truck mechanical suspension seat

Specification

* Seat size: (L×W×H) 630×540×1160
* Weight adjustment: Left hand side adjuster, (right hand side adjuster and front adjuster are optional)adjust range 40-130Kg
* Backrest adjustment: left adjust (right adjuster is optional), 80+41°
* Head restraint adjustment: adjust range 75mm (25mm×3)
* Height / rake adjustment: Left hand side adjuster, (right hand side adjuster is optional), front end 7 levels height adjust
range 65mm; rear end 7levels height adjust range 65mm ,the front and rear ends are matched with adjustable seat cushion ,rake
adjustable ±14°
* Mechanical suspension function: stroke ±30mm
* Horizontal adjustment: stroke 0±120mm
* Cushion height (working state) 295mm Cushion width 495mm Cushion depth 465mm

High backrest 895mm
* Wear a rubber dust cover under the cushion
* With seat belt fixing points, the three-point seat belt can be arranged on the seat as a whole, and the height of the retractor
can be appropriately increased (or rear-mounted) to meet the special needs of vehicle layout
* Fabric: Black imitation leather, other fabrics are optional
* Connect size:（F/B×L/R）（280*216mm）or (295.5*216mm )

·Optional: handrails (single and double); pneumatic (electric) massage; electric heating; ventilation;

Product Description

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in cartons. we can also pack it as your requirement.
Q2. What is your terms of delivery?
A: EXW,FOB or CIF according to the different conditon.
Q3. How about your delivery time?
A: Generally, it will take 1 to 50 days after receiving your payment, we always has goods in rich stock,but specific delivery time
depends on the items and the quantity of your order.
Q4. What is your terms of payment?
A: As for the big amount,T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.what is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
